ELLIE SYSTEM
Modular L-Bracket System














The World's Only Modular L-Bracket System
The Ellie System is a world first in modular camera brackets. Combining a reversible, rotatable vertical aspect, with one of four precision base units, the Ellie is the most functional, most compatible L-Bracket in the world, and the ONLY L-Bracket system with Peak Design & Arca Swiss compatibility.
Choice of FOUR different base units
Ellie has four possible base options giving an unprecedented level of compatibility. With two shoe choices - Arca or Peak Design V3 Capture, and two base lengths - Standard and Short, there's an Ellie to suit every camera.
Figure Hugging
With two-axis adjustments, Ellie fits more cameras than any other universal L-Bracket, with an unprecedented level of functionality.
Modular
Ellie's detachable release plate can be used in isolation, or with the vertical aspect. Dual Arca-Swiss profile sides and symmetrical 1/4"-20 threaded ends enable the vertical axis to be configured in 8 positions, enabling more cable access than ever before.
Adaptable. Adjustable. Innovative.
Ellie's unique vertical aspect has dual-Arca Swiss profiled edges, and symmetrical ends with twin 1/4"-20 threads, enabling 8 possible side configurations. This gives Ellie unprecedented compatibility and functionality
FOUR BASE OPTIONS

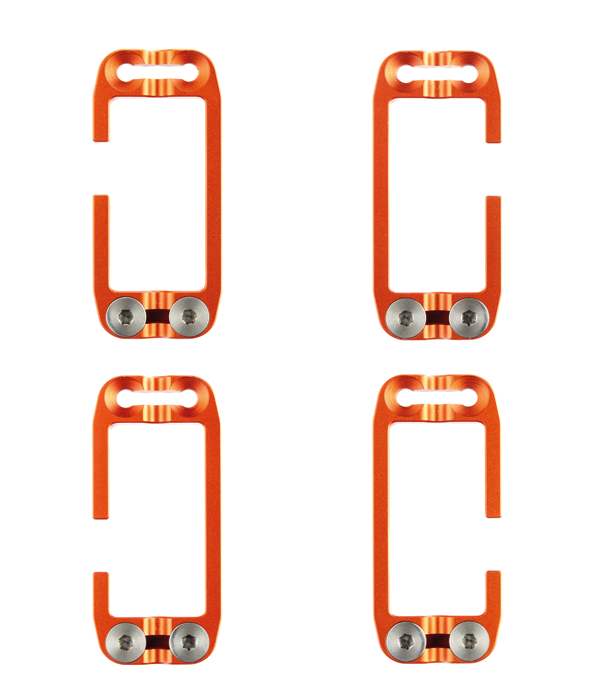

With a choice of four bases, purchasable individually, or as part of a dedicated L-Bracket, Ellie is the most advanced and compatible L-Bracket on the planet. Each base features a rear slope to better enable flip-up-or-out screens, and a strap connector. The Ellie system has two stainless-steel bars for width adjustment, and two camera screw placement options, that enable users to perfectly fit Ellie to their chosen camera.
Ellie is a culmination of a year long development process, inspired by the feedback and comments from our customers around the world.
Configurable
Ellie has 9 separate possible configurations, with infinite scope for individual set ups.
Figure Hugging
With two-axis adjustments, Ellie fits more cameras than any other universal L-Bracket, with an unprecedented level of functionality.
Modular
Ellie's detachable release plate can be used in isolation, or with the vertical aspect. Dual Arca-Swiss profile sides and symmetrical 1/4"-20 threaded ends enable the vertical axis to be configured in 8 positions, enabling more cable access than ever before.
Adaptable. Adjustable. Innovative.
Ellie's unique vertical aspect has dual-Arca Swiss profiled edges, and symmetrical ends with twin 1/4"-20 threads, enabling 8 possible side configurations. This gives Ellie unprecedented compatibility and functionality
SPECIFICATIONS
Below is a list of Ellie's specifications in all four versions.
ELLIE & ELLIE PD
Standard 85mm BASE (Peak Design or Arca Swiss options)
BASE Length: 85mm / 3.35 "
Adjustable Width: 95 mm - 128 mm / 3.74 “ - 5.04 "
Vertical Aspect Height: 85 mm / 3.35 “
Base Width: 38 mm / 1.5 “
Side Width: 38 mm / 1.5 “
Weight: 95 g / 0.21 lb
ELLIE SHORT & ELLIE PD SHORT
Short 70mm BASE (Peak Design or Arca Swiss options)
BASE Length: 70mm / 2.75 "
Adjustable Width: 80 mm - 113 mm / 3.15 “ - 4.45 "
Vertical Aspect Height: 85 mm / 3.35 “
Base Width: 38 mm / 1.5 “
Side Width: 38 mm / 1.5 “
Weight: 89 g / 0.19 lb
ELLIE
The original Ellie comes with an 85mm Arca-Swiss compatible base, with screen slope and strap connectors. Fits almost every camera, whether DSLR or Mirrorless.
ELLIE SHORT
Ellie Short comes with a 70mm base, designed specifically to fit Fujifilm and Olympus cameras, or any camera where the tripod mount is close to the battery door. With screen slope and strap connectors.
ELLIE PD
Ellie PD is identical to the original Ellie, but has a shoe compatible with Peak Design V3 Capture system. Also compatible with Arca-Swiss, and featuring screen slope and strap connector.
ELLIE PD SHORT
The lovechild of Ellie Short and Ellie PD, the Ellie PD Short features a 70mm base that is both Peak Design V3 Capture and Arca-Swiss compatible, specially designed to fit Fujifilm and Olympus cameras, or any camera where the tripod mount is situated close to the battery door.
