3 LEGGED THING ELLIE PD UNIVERSAL L-BRACKET WITH PEAK DESIGN CAPTURE-COMPATIBLE BASE - GREY
3 LEGGED THING ELLIE PD UNIVERSAL L-BRACKET WITH PEAK DESIGN CAPTURE-COMPATIBLE BASE - GREY

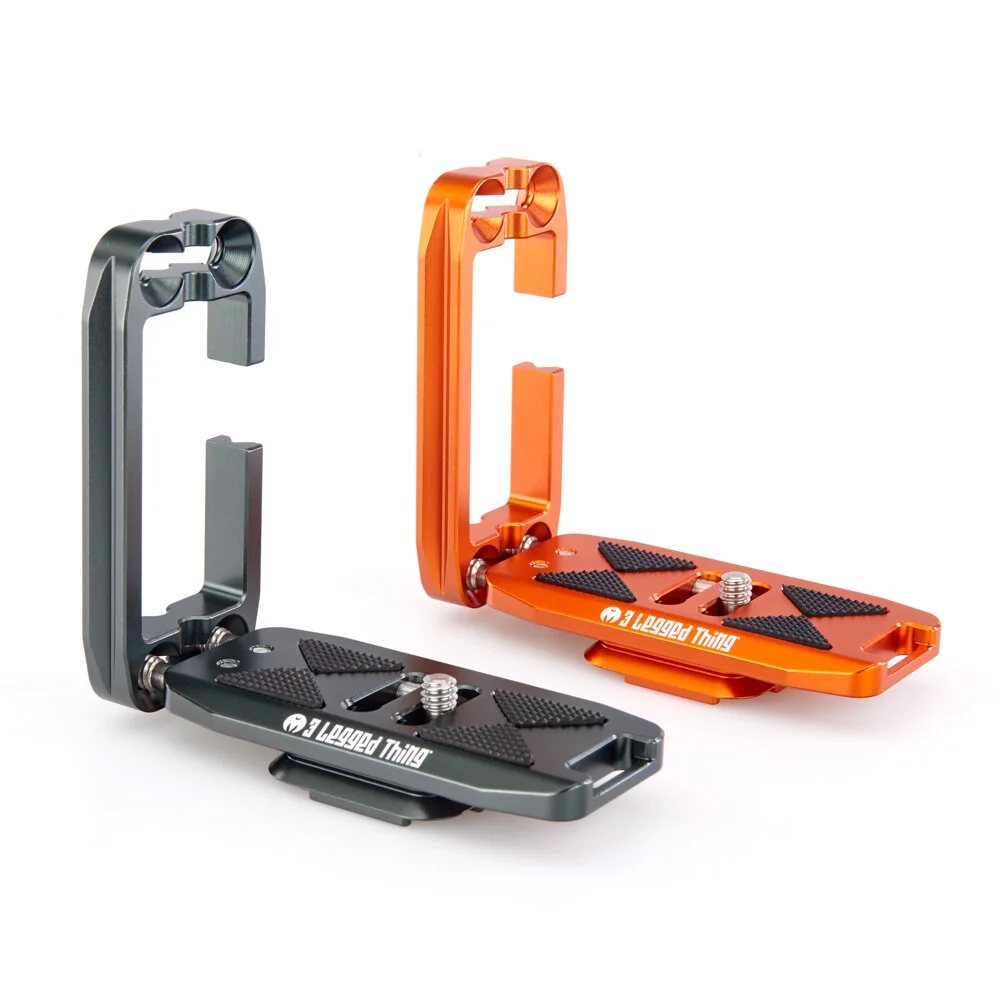

Ellie is a new evolution of universal L-Bracket, bringing users increased compatibility with a wider range of cameras, and advanced functionality.

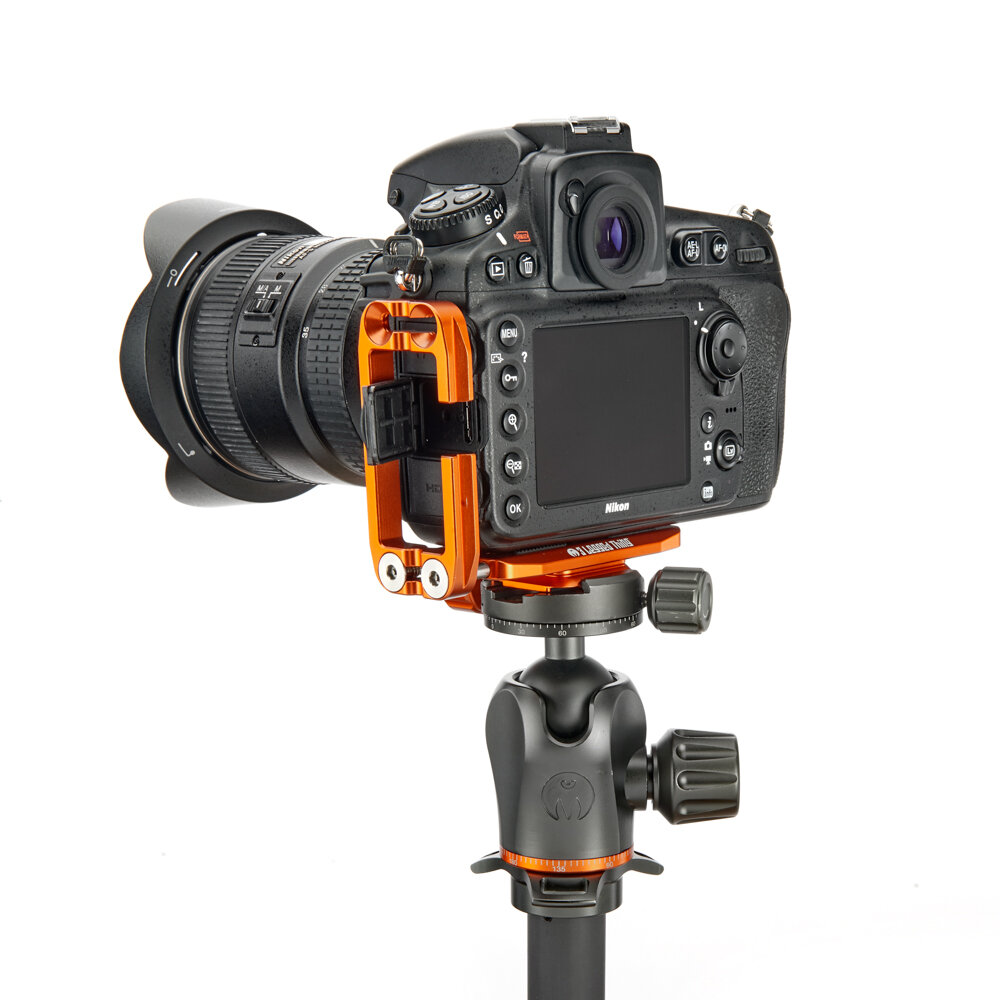

L-Brackets are primarily used to switch from landscape to portrait on a tripod whilst maintaining the focal plane and horizon.

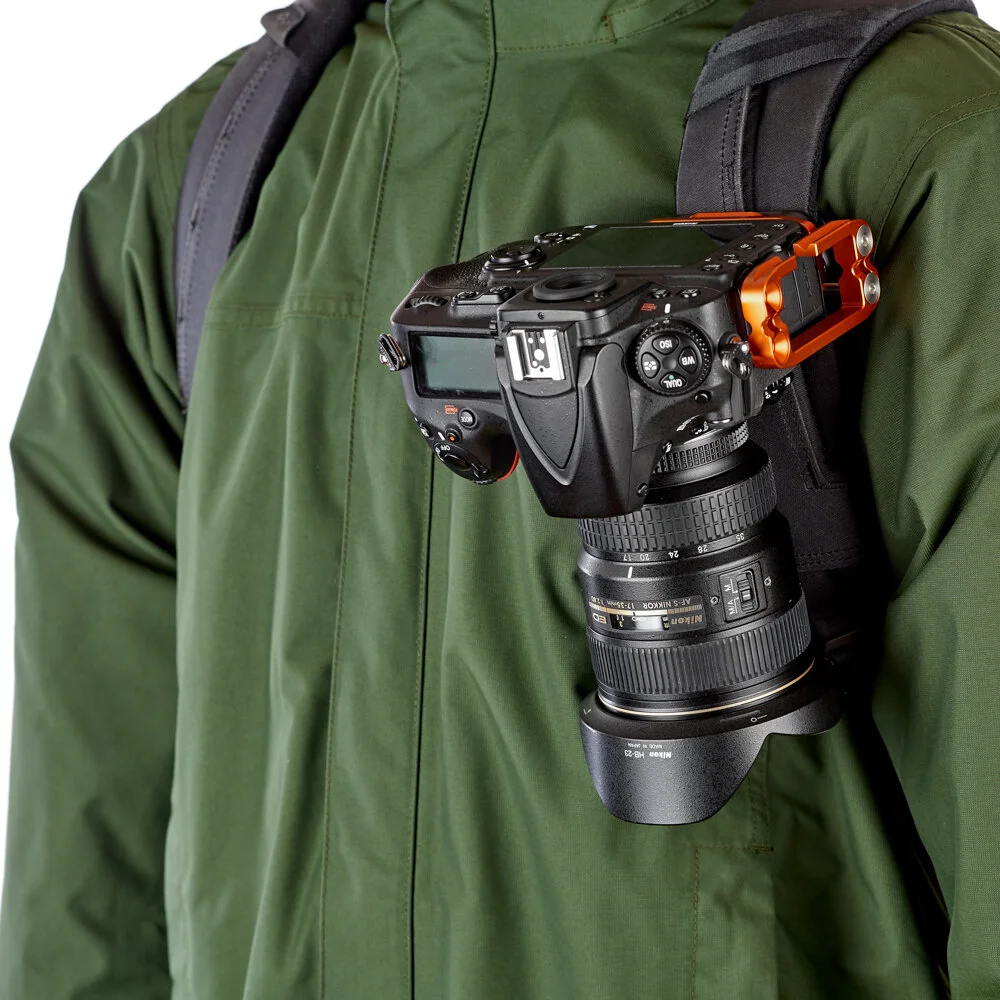

Ellie PD is specifically designed to work with Peak Design's Capture Clip system*. It features a standard Arca Swiss compatible footing that clips securely into the Capture.
Compatible with standard Arca-Swiss clamps, Ellie features two different 2 screw mount slots in the base. This allows users to position the L-Bracket in the optimal position for their camera. The length of the bracket base can be adjusted thanks to two rigid stainless steel sliding bars which are then fixed into position by the user with the supplied tool. The rear edge of the base is sloped to better enable screen access. Ellie’s vertical aspect has an opening in one side, allowing users with L-shaped cable pins to connect accessories. This opening can be placed in one of four positions by inverting or reversing the vertical aspect.
*Peak Design Capture v3 only
SO, WHAT'S IN THE KIT?
Ellie PD Arca-Swiss and Peak Design Capture-compatible* quick release L-Bracket with 85mm base
Stagsden Stainless Steel camera screw
Dual-ended mini tool with two hex keys for adjustment of vertical aspect and to secure stainless steel sliding rods into place
*Peak Design Capture v3 only
FEATURES
Universal Peak Design Capture-compatible• L-Bracket for mirrorless and DSLR cameras
Choice of two screw mount slots for optimal positioning of the camera
Adjustable base length thanks to rigid stainless steel rods held in place with stainless steel screws
Opening in vertical aspect can be set in one of four positions for better cable and accessory connections
Dual ¼”-20 screw mounts on vertical aspect for adding accessories (monitors, microphones etc) *Due to the nature of this product, these mounts are not suitable for direct connection of single-mount sling straps*
Precision engineered plate profiles for secure connection to your tripod head
Vertical aspect can be mounted downward to create a rocker mount for your tripod
Rear of base plate is sloped to better enable screen access
Detachable release plate base can be used in isolation
Base slot for strap attachment
*Peak Design Capture v3 only
PRODUCT SPECIFICATIONS
Base Length - 85 mm / 3.35 "
Working Base Length - 95 - 128 mm / 3.74 - 5.04 "
Upright - 85mm / 3.35 "
Shoe - 38 mm / 1.5 " Arca Swiss and Peak Design Capture v3 Compatible
Weight - 94 g / 0.21 lb
